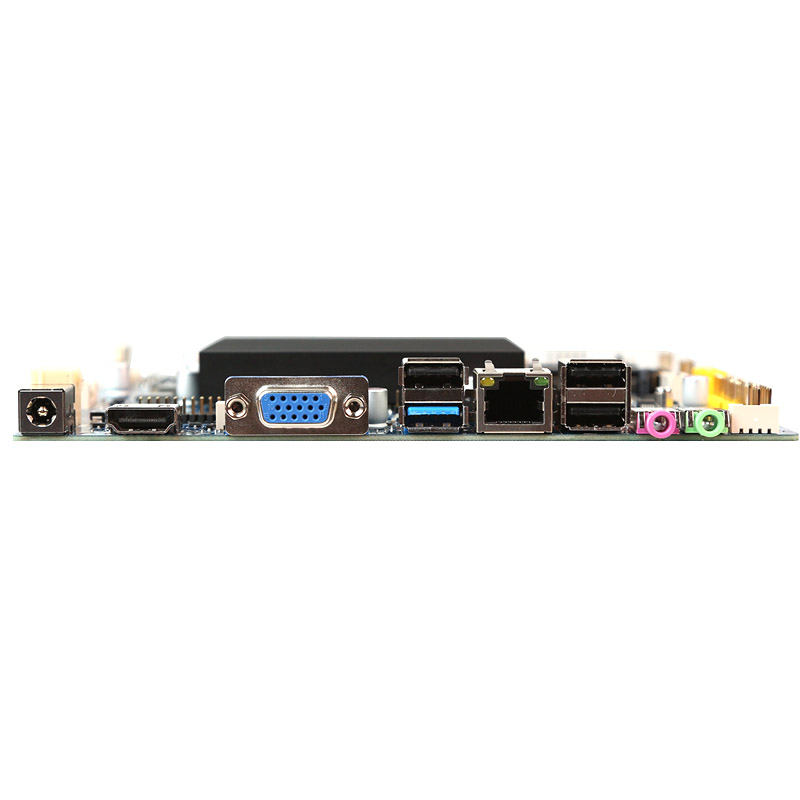

DC Jack

1

VGA

1

HDMI

1

COM

0

USB

1×USB3.0，3×USB2.0

LAN

1×RJ45   1000M LAN

Audio

1×Line-out，1×Mic-in

Internal Connector

LVDS/Inverter

1/1

VGA

1

SATA/SATA_PWR

1/1

mSATA

1

Mini-PCIe/SIM

1/1

LPT

1

COM

2

USB

3×USB2.0   Header，其中JUSB1/2分別可擴展2個USB2.0接口，JUSB3可擴展1個USB2.0接口

Audio

1×F_AUDIO，1×JSPK

GPIO

1，4in-4out

PS/2

1，可轉(zhuǎn)接鍵盤及鼠標

FAN

1×CPU_FAN，1×SYS_FAN

DC Port

1×4Pin   ATX Port

Mechanical & Environment

Dimension

170×170mm

PWR Input

DC 12V

Operation

0~50℃，10%~90%，non-condensing

Storage

-25~75℃，5%~95%，non-condensing

CPU

Intel?   Celeron? J1900 2.0GHz

PCH

N/A

Memory

Slot   Number

1

Type

DDR3L   SO-DIMM

Max   Size

8GB

Channels

Single   Channel

Graphics

Controller

Intel?   HD Graphics

VGA

1×DB15，1×Header

DVI

0

HDMI

1

DP

0

LVDS

1

eDP

0

Multi   Display

Dual   Displays

Storage

SATA

1

mSATA

1

M.2

0

COM

Port   Number

2

Mode

2×RS232，其中COM2可選RS485模式

PWR

COM2/COM3可選5V/12V供電

Expansion Slot

PCIe

0

Mini-PCIe

1

M.2

0
