GI-3568-C
GI-3568-C
最高可配8GB內存，頻率高達1600MHz；支持全鏈路ECC
支持mSATA/PCIE/USB3.0等外圍接口，可接大容量硬盤
擁有MIPI-DSI，HDMI2.0，EDP，最多可支持三屏異顯輸出
集成了雙核心架構 GPU，高性能VPU以及高效能 NPU，可用于輕量級人工智能應用
Processor System | |
CPU | RK3568，ARM Cortex A55，Quad-core，2 GHz |
GPU | G52 2EE,OpenGL ES1.1/2.0/3.0/3.1/3.2, Vulkan 1.1, OpenCL 2.0 |
NPU | RK NN, 0.8Tops |
Memory | |
Type | 32-bit，LP4/LP4x |
Capacity | 2GB(Up to 8GB) |
Display | |
eDP | 2×eDP Port |
HDMI | 1×HDMI Port, Up to 4K*2K Multiple Display |
LVDS | 2×LVDS Port（LVDS與eDP 二選一) |
MIPI | 1×MIPI_DSI |
Storage | |
eMMC | Capacity 8GB(Up to 64 GB) |
COM | |
Port Number | 5 |
Mode | 4×RS232（可配置為TTL），1×RS485 |
PWR | 可選5V/12V供電 |
Touch panel | |
Port | I2C Interface and USB Interface |
Ethernet | |
RJ45 | 10/100/1000Mbps |
Wifi | |
AP6256 | 802.11 b/g/n/ac, 2.4/5GHz |
Bluetooth | |
AP6256 | BT-V5.0 BLE |

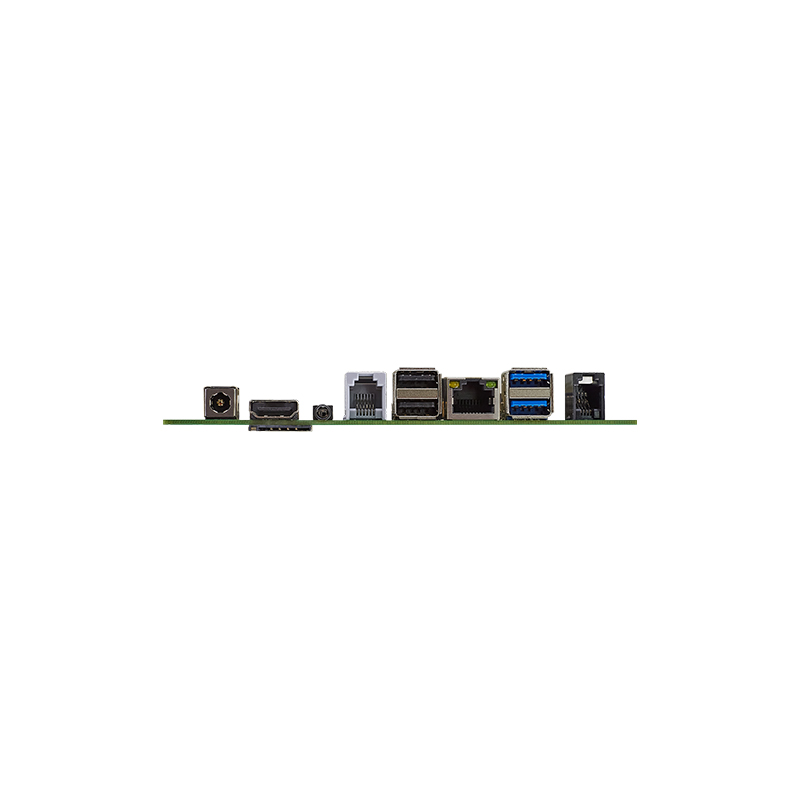

IO & Connector | |
Rear IO | 1×DC_IN,DC12V~24V/2A（DC_Jack or 1x4Pin Wafer）,24V for printer |
1×RJ11，Cash box controller | |
1×RJ09，RS232 (5V Power) | |
1×SIM Slot(With card tray) | |
1×TF Card Up to 64 GB | |
2×USB2.0 2×USB3.0 | |
1×RJ45 10/100/1000M LAN | |
1×HDMI | |
1×Earphone | |
Internal Connector | 2×LVDS/eDP，2×Backlight |
1×MIPI_DSI | |
8×USB2.0 | |
3×RS232，1×RS485 | |
1×Speaker port，2*3W, 8Ω | |
2×TP port，I2C Interface | |
1×MINI PCIe (mSATA/4G/PCIe 2.0) | |
Mechanical & Environment | |
Dimension | 148mm * 102mm |
PWR Input | DC12V-24V |
PWR Output | DC12V-24V |
Operation | 0~50℃，10%~90%RH，non-condensing |
Storage | -25~75℃，5%~95%RH，non-condensing |
OS | |
Android 11、Linux、Debian | |
|
